Description

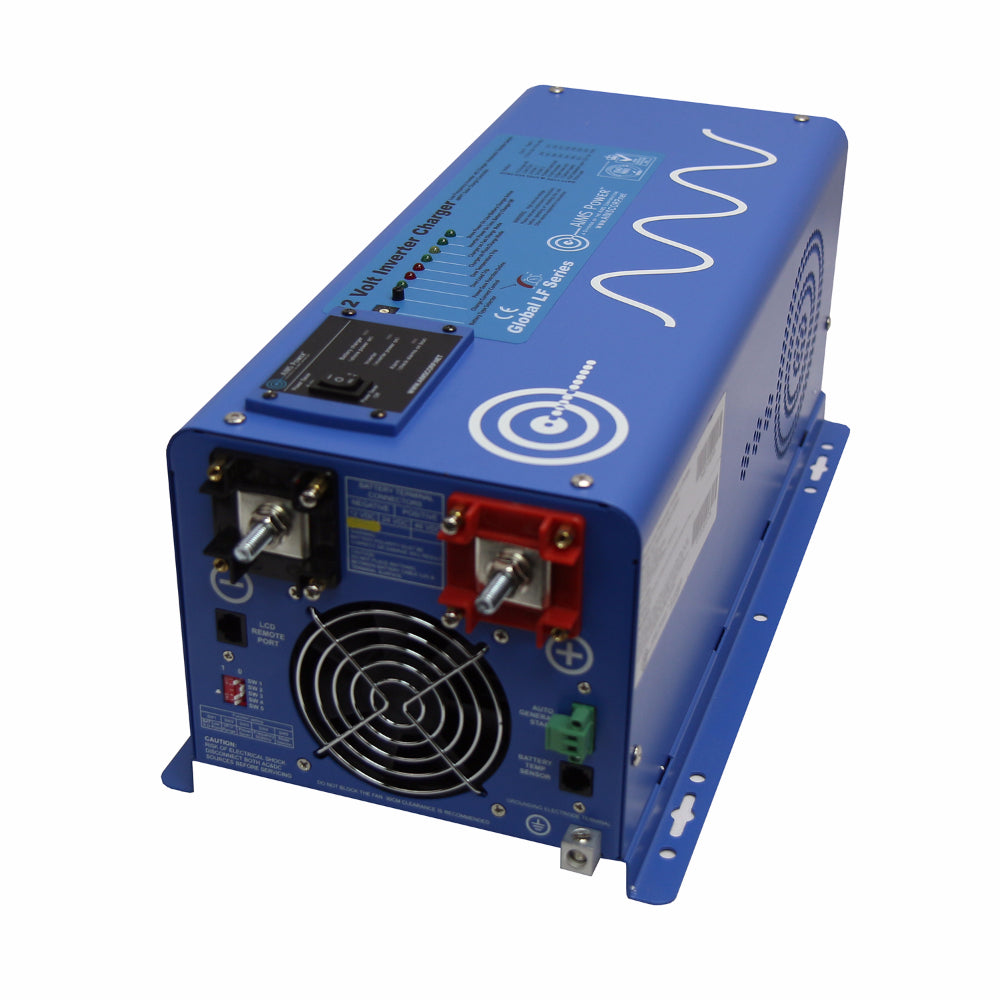

Looking for a reliable and versatile inverter that can power your appliances and tools without any interruptions? Check out the AIMS Power 2000 Watt 12 Volt Pure Sine Inverter Charger with Transfer Switch. This industrial-grade unit can convert DC power from batteries into AC electricity that is suitable for running most appliances and power tools.
With a built-in AC-to-DC battery converter charger and transfer switch, this inverter allows you to recharge your battery bank from an AC source such as a generator or shore power. It's perfect for renewable solar, off-grid homes and businesses, mobile RV homes, and emergency backup power applications that require 110 or 120 volts of alternating current.
This inverter is also available in 24 and 48 volt models, and all models are in stock and ready for same-day shipping. It boasts an average 10 millisecond transfer time with the built-in transfer switch, making it a nearly uninterrupted power supply when combined with a battery bank. The inverter also features a battery-type selector, which helps you regulate the voltage going into the battery bank, maximizing its lifespan and saving you money.
With a 6000 watt surge capability for 20 seconds, this inverter is capable of running most electric chainsaws, portable grinders, shop vacs, and more. It also achieves this by virtue of its direct connect terminal block, which allows users to surpass the 1,500 watt maximum output of a GFCI outlet that would typically be seen on an inverter.
This low frequency inverter features a heavy-duty transformer that provides a lowered level of total harmonic distortion (THD) produced during the DC-to-AC inversion process. This allows for a cleaner transfer of energy, which increases efficiency and provides a quieter, nearly inaudible performance.
Additionally, the conformal-coated (marine-coated) boards make it resistant to dust and/or water vapor that may travel through the air and could otherwise be damaging to the unit. This feature is perfect for boating applications, like powering a sound system.
Choose the AIMS Power 2000 Watt 12 Volt Pure Sine Inverter Charger with Transfer Switch for a versatile and reliable inverter that can power your appliances and tools without any interruptions. Order now!
Features:
- 2000 Watt low frequency inverter
- 6000 Watt surge for 20 seconds 300% surge capability
- Battery priority selector

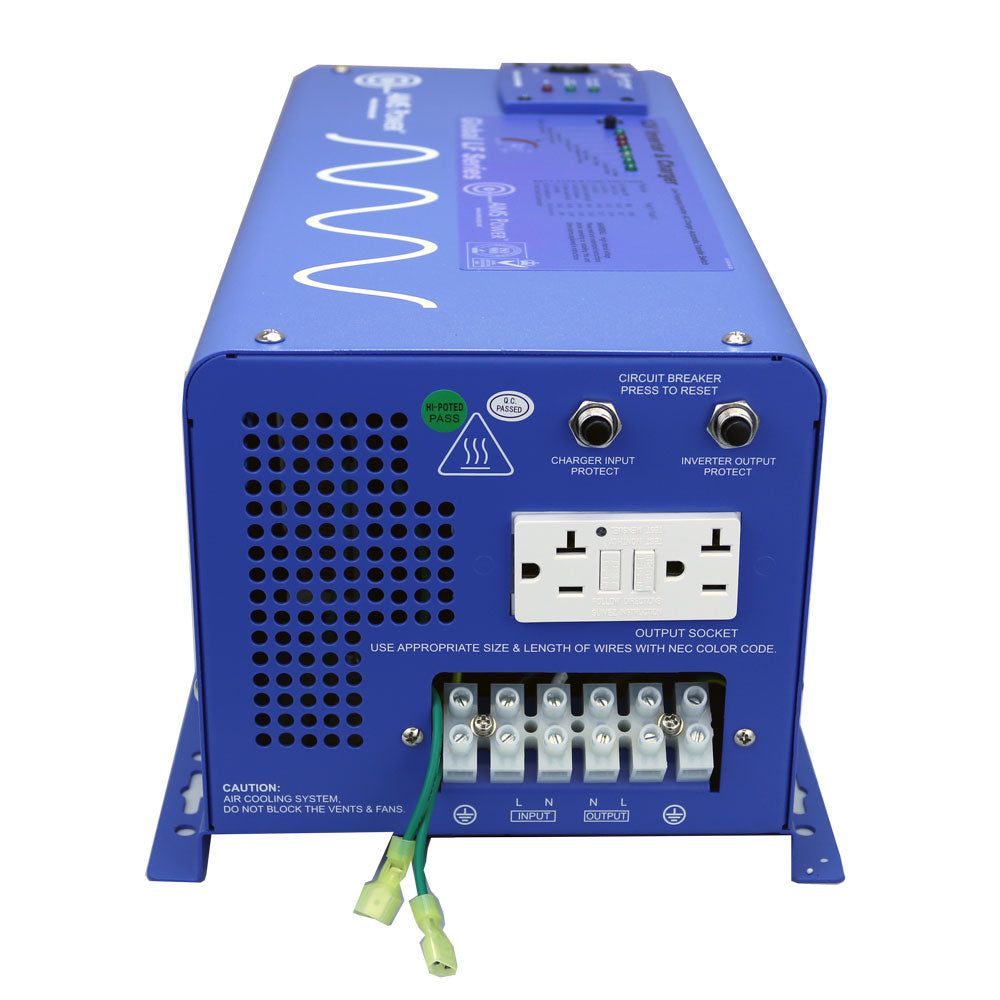

- Terminal block
- Marine coated and protected
- Multi stage smart charger 70 A
- GFCI – 20 A
- Remote panel available
- Auto frequency
- 10msec typical transfer time
- Selectable 25W power save mode (hibernation)
- 7 battery type settings for charger
This 2000 watt low frequency AIMS Power inverter charger is three products in one.
1. The inverter transforms DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to power tools and appliances of all varieties.
2. A built-in 30 amp transfer switch, which will automatically detect when you’re switching from shore power to battery-bank power.
3. It also has a built-in 70 amp battery charger which uses AC power, like from the grid or from a fuel-powered generator, that can be used to recharge a battery bank as well. The battery-type selector on the top of the unit allows the ability to adjust the voltage provided to the bank.
Check out the 4000 watt low frequency AIMS Power inverter charger for a comparable unit that can handle the startup surges (up to 12,000 watts for 20 seconds) of tools with larger electrical requirements, such as an air compressor.
As with all AIMS Power inverters, the PICOGLF20W12V120V is covered under a 30-day money back guarantee as well as a one year manufacturer’s warranty and free technical support.
Specifications:
- Continuous output power: 2000 Watt
- Surge rating: 6000 Watt (20 Seconds)
- Output waveform: pure sine/same as input (bypass mode)
- Nominal efficiency: >88% (peak)
- Line mode efficiency: >95%
- Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Terminal output breaker – 20 A
- Transfer load – 30 A
- GFCI breaker – 20A
- Typical transfer time: 10ms (max)
- THD: < 10% DC
Input Specifications:
- Nominal input voltage: 12.0 VDC
- Minimum start voltage: 10.0 VDC
- Low battery alarm: 10.5 VDC-11.0 VDC
- Low battery trip: 10.0 VDC-10.5 VDC
- High voltage alarm: 16.0 VDC
- Low battery voltage restart: 13.3 VDC
- Idle consumption: 28 Watt
- Input breaker – 20 A
- Power saver mode idle consumption: 12.7 watts
Charger Specifications:
- Output voltage: depends on battery type
- Charger rate: 70A
- Over charge protection shutdown 15.7 V
- Selectable charge setting based on battery type
- Adjustable charge current off-20%-100%
- Four stage smart charger
Transfer Switch Specifications:
- 30 A automatic transfer load
- 10 ms (max)
Dimensions:
- Unit weight: 41 lbs.
- Unit size L x W x H: 16.48 x 8.74 x 7.1 inches
- Shipping weight: 53 lbs.
- Shipping size L x W x H 23.5 x 13.0 x 12.5 inches
Downloads:
AIMS Power 2000 Watt 12 Volt Pure Sine Inverter Charger with Transfer Switch Users Manual
