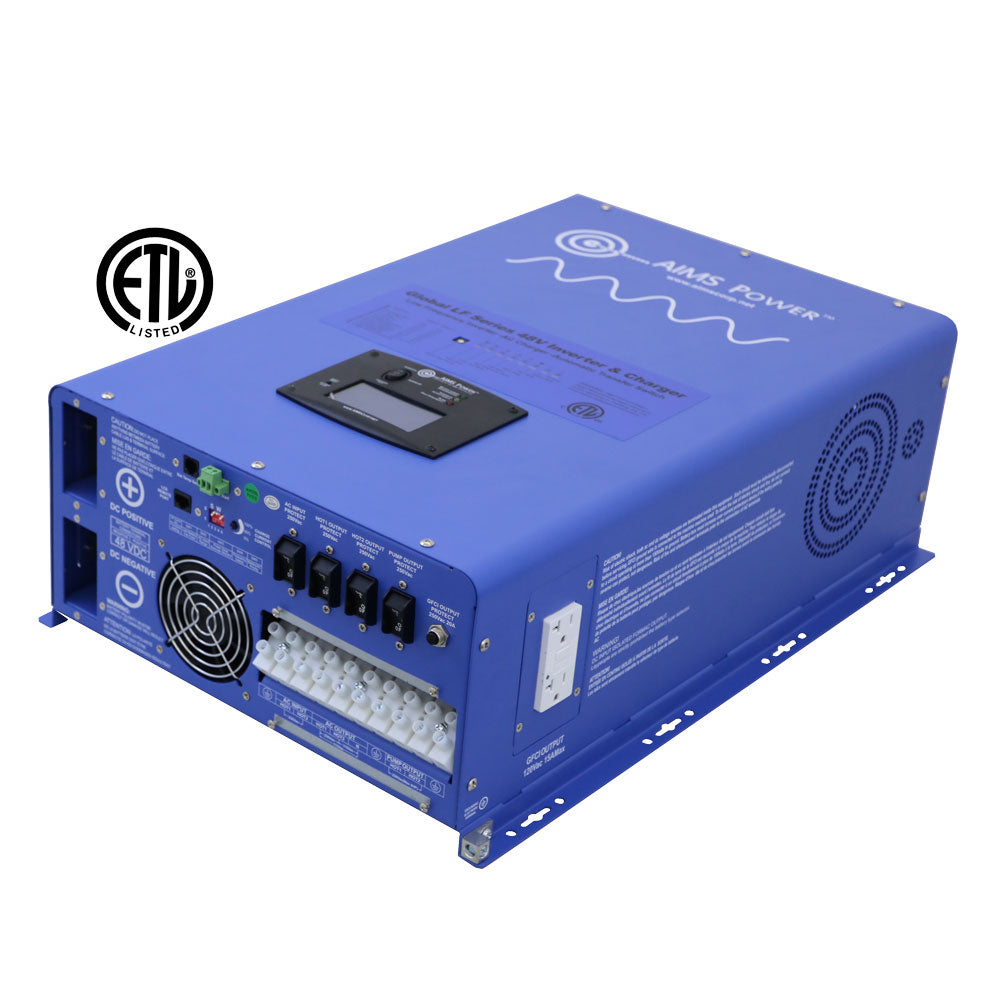

Introducing the AIMS Power 12000 Watt Pure Sine Inverter Charger, the ultimate power solution for your backup and off-grid needs. Designed with a 48 Volt DC input, this inverter charger boasts remarkable efficiency in large systems, making it an ideal choice for sustainability enthusiasts who want to maximize their energy usage.
With up to 12,000 watts of continuous power and 36,000 watts of surge (for up to 20 seconds), this inverter charger is the perfect choice for emergency backup power for both homes and businesses. It is also equipped with a direct-connect terminal block that allows users to harness its 300% surge power, making it perfect for cabins, vacation homes, and other off-grid locations.
This inverter charger is built to withstand reasonable heat and temperature fluctuations thanks to its over-temperature protection and dual thermally-controlled fans. It is also protected from humidity and airborne dust and dirt by its marine-coated (conformal-coated) boards, making it a reliable choice for any emergency power application.
The AIMS Power 12000 Watt Pure Sine Inverter Charger is a split-phase inverter that outputs 110/120 or 220/230/240 Vac and can operate on 50 or 60Hz. This makes it an internationally versatile option that can be used with nearly any electrical system on the planet.
With its 120 Amp multi-stage smart charger, this inverter charger is capable of charging gel, lead, AGM, and lithium (LiFePO4) batteries. It also features an automatic transfer switch, selectable 25W power save mode, and eight battery charger settings.
This top-of-the-line product offering from AIMS Power comes with a free two-year warranty and tech support, giving you peace of mind knowing that your investment is protected. So, if you're looking for a powerful and reliable inverter charger that can get any job done imaginable, look no further than the AIMS Power 12000 Watt Pure Sine Inverter Charger. Choose renewable energy and take a step in the right direction when it comes to preserving our beautiful planet.
Features:
- 12000 watt low frequency inverter 110/220Vac Split Phase
- 36000 watt surge for 20 seconds -3x surge capability
- Battery priority selector
- Terminal block
- Marine coated and protected
- Multi stage smart charger 120 Amp charges gel, lead, AGM, and lithium (LiFePO4)
- Remote panel available
- 60hz or 50 hz selectable dip switch
- 10msec typical transfer time
- Selectable 25W power save mode (hibernation)
- 8 battery charger settings
- Automatic transfer switch
Specifications:
Inverter Output Specifications:
- Continuous Output Power: 12,000 Watts
- Surge Rating: 36000 Watts (20 Seconds)
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- 100-110-120Vac / 220-230-240Vac
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- THD: < 10% DC
- Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Input Specifications:
- Nominal Input Voltage: 48.0Vdc
- Low Battery Alarm: 42.0Vdc-44.0Vdc
- Low Battery Trip: 40.0Vdc-42.0Vdc
- High Voltage Alarm: 64.0Vdc
- Low Battery Voltage Restart: 62.0Vdc
- Idle Consumption: 200 Watts
- Power Saver Mode Idle Consumption: 40 Watts
- Automatic Transfer Switch - 63A @ 220/230/240V
- Bypass - 63A @ 220/230/240V
Charger Specifications:
- Output Voltage: Depends on battery Type
- Charger Rate: 120A
- Four Stage Smart Charger with Current Adjust Dial: 0%-20%-100%
Dimensions:
- Unit Weight: 174 lbs.
- Unit Size L x W x H: 23.3 x 16.3 x 7.9 inches
- Shipping Weight: 200 lbs.
- Shipping L x W x H 30 x 21.25 x 15.25 inches
Downloads:
AIMS Power 12,000 Watt 48 volt Inverter Charger 120/240vac - PICOGLF120W48V240VS Users Manual
