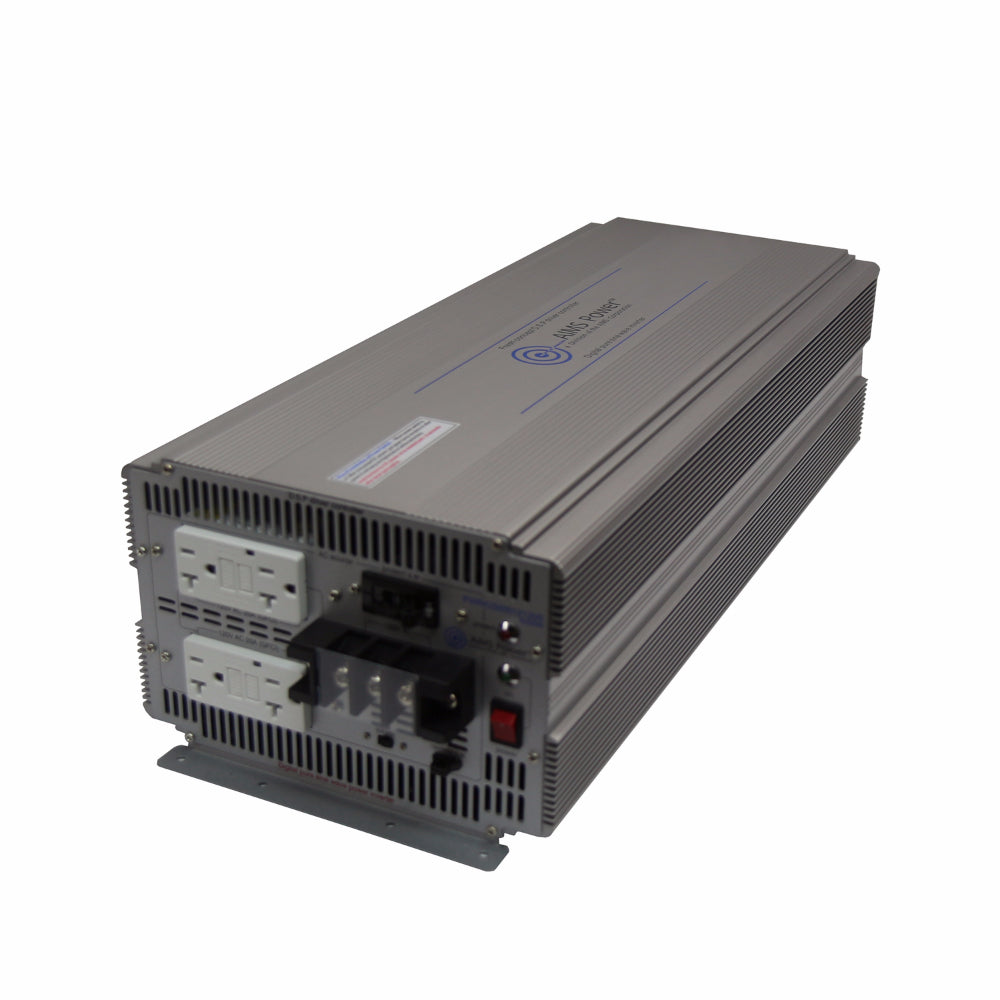

Introducing the AIMS Power 5000 Watt Pure Sine Inverter, an industrial-grade power inverter designed to perform in harsh environments. Completely overhauled, this inverter is now FCC certified and features a dual GFCI outlet, providing increased efficiency with less noise through its thermally controlled fan.
Powered by a DSP (Digital Signal Process) drive, this 5000-watt inverter delivers pure sine power, making it ideal for running nonlinear loads such as variable-speed motors and small compressors. It's also perfect for sensitive electronics like laser jet printers, computer servers, medical equipment, and more.
This pure sine wave inverter can be used for off-grid home backup power systems, solar and boat applications, work vehicles, tiny houses, and RVs. With 5000 watts of continuous power and 10000 watts of surge power, you can work or play practically anywhere.
Featuring a 12 Volt DC input, 60hz or 50hz switch, and >95% efficiency at 1/3 load, this inverter is highly efficient, delivering efficient output even at low voltage. It also includes an external battery voltage sensor to monitor your battery capacity and power consumption.
The AIMS Power 5000 Watt Pure Sine Inverter is equipped with a range of safety features, including short circuit protection, GFCI and AC breaker, and a five-function protection LED indicator. Dual cooling fans keep the inverter operating at optimal temperature, and an included DC volt meter and instruction manual make installation and use a breeze.
AIMS Power offers lifetime tech support and a one-year warranty for parts and labor replacement. Experience reliable, efficient, and safe power with the AIMS Power 5000 Watt Pure Sine Inverter.
Features:
- 5000 Watt continuous power
- 10000 Watt surge
- 12 Volt DC input
- Pure sine wave
- 60hz or 50hz switch
- Highly efficient : > 95% @ 1/3 load
- Efficient output at low voltage
- 2 - GFCI Dual Outlet
- Direct connect AC Terminal Block Connector and

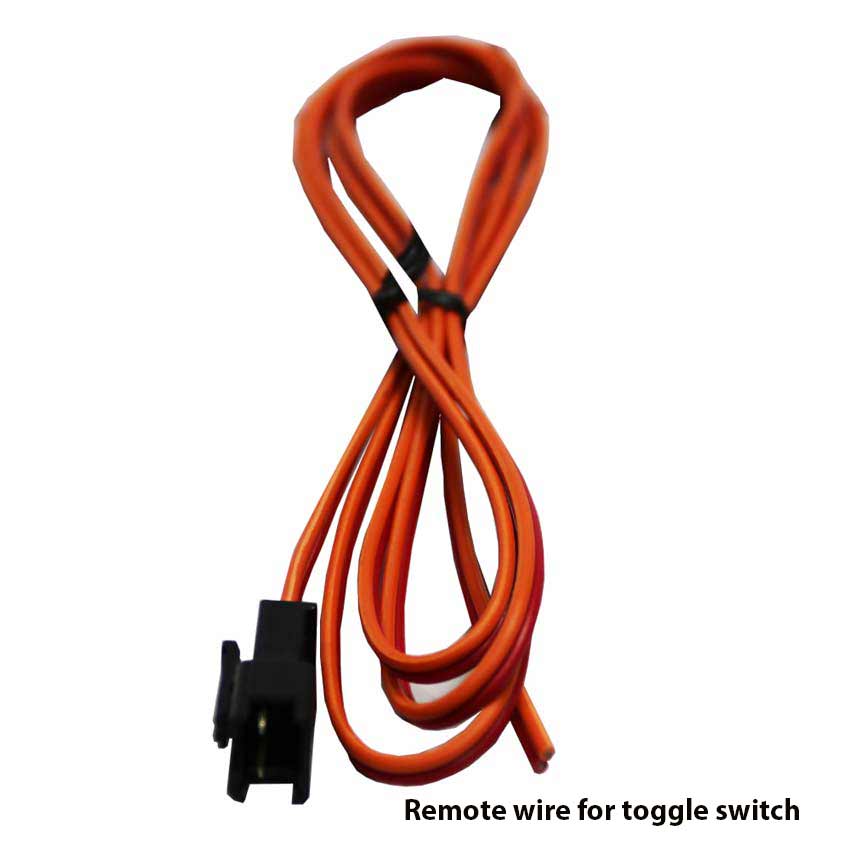

- Cable for optional remote on/off switch
- Isolated ground & neutral
- Short circuit protection (GFCI and
- AC Breaker)
- On/off switch
- 5 Function Protection LED indicator
- AC Breaker
- Dual cooling fans thermally controlled
- DC volt meter included
- Instruction manual
- Lifetime tech support
- 1 Year Warranty Parts and Labor replacement
Specifications:
- DC Input Voltage 13.2 V (10.5V-15V)
- Output Voltage no load 120Vac +/- 3%
- Continuous 5000 Watts
- Surge 10000 Watts (1/2 second)
- 91% Efficiency @ full load
- No Load Current (Fan Off) 2.6A 12V
- No Load Current (Fan On) 4.4A 12V
- Low Battery Shut Down: 10.0V
- Low Battery Return on Power: 11.2V
- High Battery Shut Down: 15.9V
- High battery return on Power: 15.0V
- Frequency Selection 50/60hz
- Over Temperature Protection: -25ºC - 79ºC
- Cooling Fan on Temperature: 40ºC
- GFCI Outlets rated at 20A per block.
- Dimensions (inches) 23.75 x 8.88 x 6.25
- Weight: 27lbs
