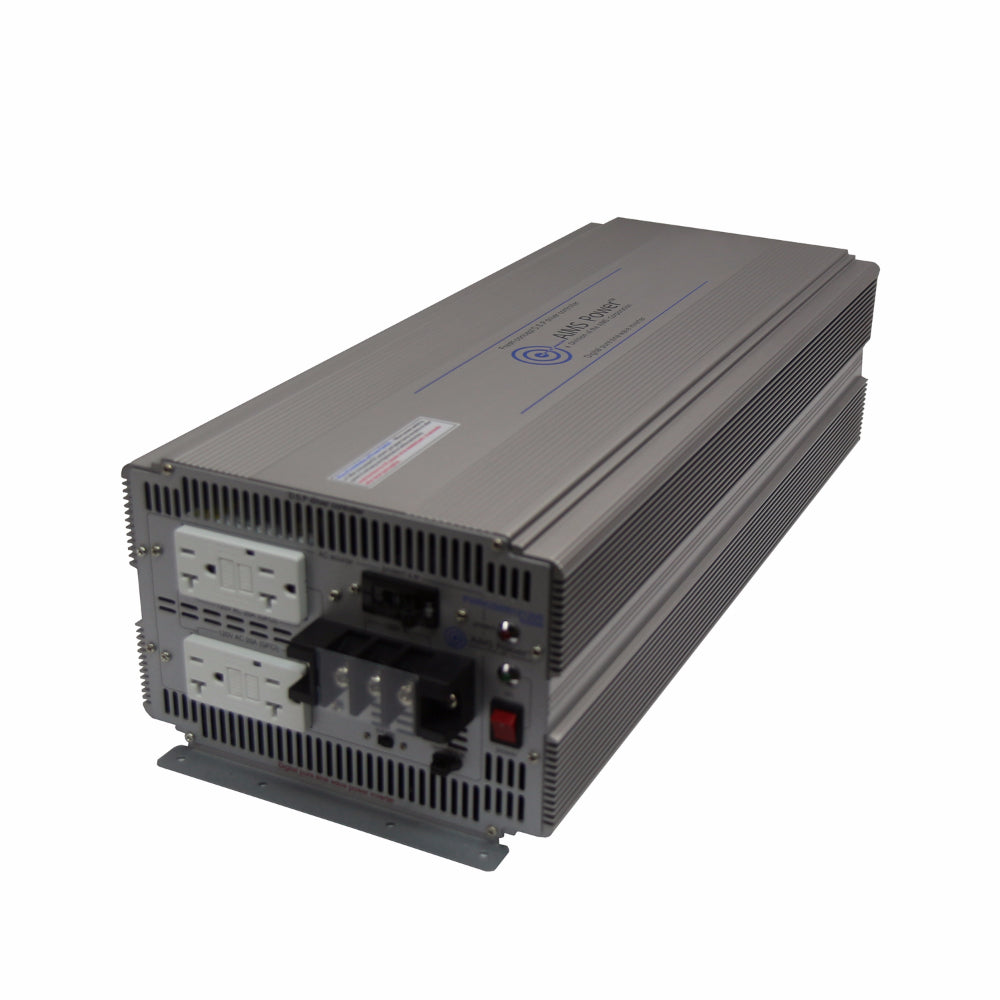

Introducing the AIMS Power 5000 Watt Pure Sine Inverter - 24 volt 50/60hz, a reliable and efficient solution for your off-grid power needs. With its high output performance achieved through a DSP drive, this inverter is perfect for running nonlinear loads, including variable speed motors and small compressors. It also provides stable, pure sine power, making it ideal for sensitive electronics, such as LaserJet printers, computer servers, and medical equipment.
This inverter is designed and tested for harsh environments, ensuring its durability and reliability. It has been completely overhauled and now includes a dual GFCI outlet and is FCC certified. Plus, it features a thermally controlled fan, which increases efficiency and reduces noise. Even as your battery bank voltage decreases, this inverter will continue to maintain output voltage.
With 5000 watts of continuous power and 10000 watts of surge for 0.5 seconds, this inverter is powerful enough to handle all your energy needs. It operates at 24 VDC and is more efficient at higher loads. An external battery voltage sensor allows you to monitor your battery capacity and power consumption.
Whether you're looking to power your tiny home solar setup, RV, boat, or work vehicle, this inverter is an excellent choice. It comes with a direct connect AC terminal block connector and cable for a remote on/off switch, as well as an AC breaker, DC volt meter, and dual cooling fans that are thermally controlled. Plus, it's backed by a 1-year warranty for parts and labor replacement and comes with lifetime tech support.
Invest in the AIMS Power 5000 Watt Pure Sine Inverter - 24 volt 50/60hz for a reliable and efficient off-grid power solution that meets all your needs.
Features:
- 5000 Watt continuous power
- 10000 Watt surge for 0.5 second
- 24 Volt DC input
- Pure sine wave
- 60hz or 50hz switch
- Highly efficient - improved ouptut at low voltage
- 2 - GFCI Dual Outlet
- Direct connect AC Terminal Block
- Connector and cable for remote on/off switch
- Isolated ground & neutral
- Short circuit protection (GFCI and AC Breaker)
- On/off switch
- 5 Function Protection LED indicator
- AC Breaker
- DC volt meter included
- Dual cooling fans thermally controlled
- Instruction manual
- 1 year tech support
- 1 Year Warranty Parts and Labor replacement
Specifications:
- DC Input Voltage 26.4V (21V-30V)
- Output Voltage no load 120Vac +/- 3%
- Continuous 5000 Watts
- Surge 10000 Watts
- 91% Efficiency @ full load
- No Load Current (Fan Off) 1.3A 24V
- No Load Current (Fan On) 2.2A 24V
- Low Battery Shut Down: 20.0V
- Low Battery Return on Power: 22.4V
- High Battery Shut Down: 31.7V
- High battery return on Power: 30.0V
- Frequency Selection 50/60hz
- Over Temperature Protection: -25ºC - 79ºC
- Cooling Fan on Temperature: 40ºC
- GFCI Outlets rated at 20A per block.
- Dimensions (inches) 23.75 x 8.88 x 6.25
- Weight: 27lbs
